Planning and Design

The initial phase involves meticulous planning and network design. This includes site surveys to assess soil conditions and terrain, identifying existing underground utilities to prevent conflicts, coordinating rights-of-way, and acquiring necessary permits. Optimal cable entry points are determined, and the most efficient cable route path is mapped out, considering factors like minimum bend radius requirements to prevent signal degradation and cable breakage. Professional teams utilize specialized equipment to ensure that installation forces remain within acceptable limits for delicate fiber cables.

Trenching and Conduit Placement

Following planning, trenches are excavated or directional boring is performed to accommodate protective conduit systems or direct cable burial. Trench depth must comply with local code requirements and soil types, typically ranging from 18 to 36 inches, though urban areas might be 12-24 inches and high-traffic or rural areas 24-48 inches. High-density polyethylene (HDPE) or PVC conduits are strategically placed to offer long-term protection against environmental factors and mechanical damage, simplifying future maintenance and allowing for network expansion. Microtrenching is another cost-effective and fast approach for urban environments

Cable Laying and Protection

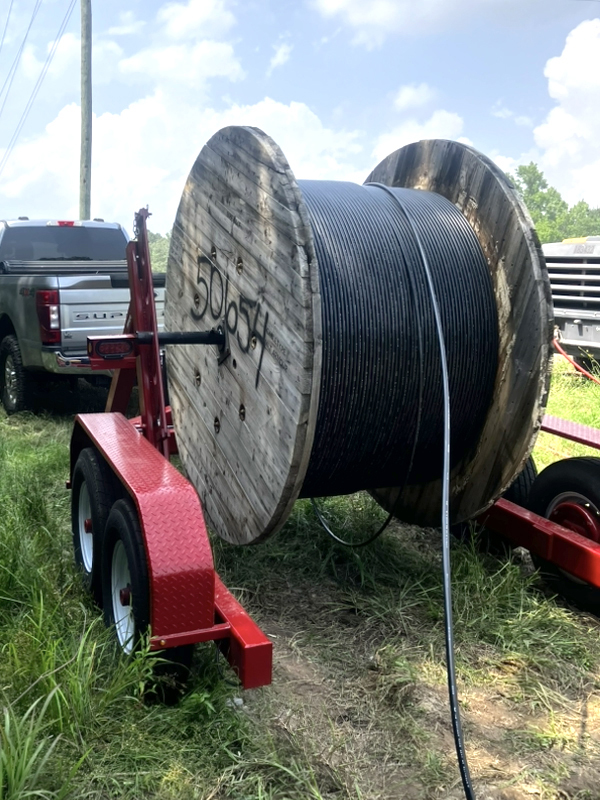

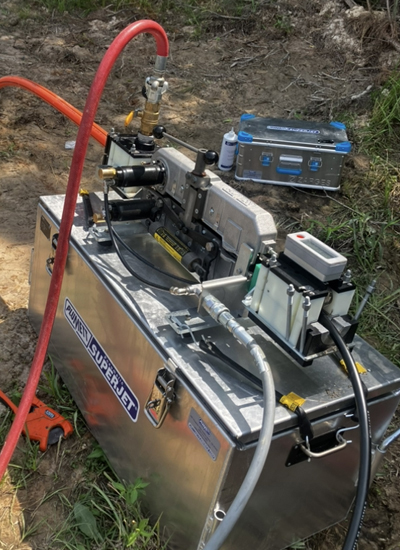

The process of laying fiber optic cables demands precision and proper handling techniques. Cables are either pulled through conduits using winch equipment, blown through conduits using compressed air, or directly buried if they are armored. Monitoring pulling tension is critical to prevent damage to the sensitive fiber strands. Armored cables, often used for direct burial, feature enhanced protective elements like corrugated steel armor and water-blocking materials to withstand harsh environments.

Splicing and Termination

Reliable connections are established through precise splicing and termination techniques. Fusion splicing is the industry standard for permanent single-mode fiber connections, offering low signal loss and high performance. Mechanical splicing is suitable for multimode fibers or temporary repairs. Accurate fiber cleaving is crucial for clean, low-loss splices, and modern splicing machines often estimate splice loss to ensure quality. Termination involves connecting the fiber to devices like wall outlets or equipment, protecting the fibers from dirt and damage, and preventing excessive light loss.

Testing and Verification

After installation, comprehensive testing and verification are performed to ensure the network meets performance standards. Tools like Optical Time-Domain Reflectometers (OTDRs) are used to evaluate cable integrity, identify weak points, and measure signal loss. Insertion loss measurement, reflectance analysis, and end-to-end system verification confirm that the cables function as intended and support high-speed data transmission. This phase also includes checking for Chromatic Dispersion (CD) and Polarization Mode Dispersion (PMD) to ensure optimal performance. Detailed documentation, including test results and as-built drawings, is prepared for future maintenance and expansion.

Challenges and Solutions

Underground fiber installation presents challenges such as complex site access, utility coordination, and variable soil conditions. Solutions include advanced planning, detailed site surveys, specialized equipment like directional boring machines, and rigorous quality control protocols. Proper burial depth, influenced by cable type, soil conditions, and local regulations, is crucial for long-term protection against mechanical harm, frost, and surface disruption.

Cost Considerations

While underground installation typically has higher upfront costs than aerial options, ranging from $1 to $6 per foot or $15-$35 per linear foot for basic deployments, it offers long-term savings through reduced maintenance and enhanced reliability. Factors affecting cost include distance, installation method, environmental conditions, labor, and permit fees.

Benefits

The primary benefits of underground fiber optic installation include enhanced protection from environmental elements, increased reliability, minimal signal loss over long distances, high bandwidth capacity, and a longer lifespan. It also offers aesthetic advantages by eliminating visible poles and overhead wires.

Professional Services

Hiring experienced professionals is crucial for successful underground fiber optic installation. Companies like Toptech Cabling, Phoenix Communications Inc., Stafford, FiberTechs, The Network Installers, IQ Fiber, and StarCom offer comprehensive services, including planning, design, installation, splicing, testing, and emergency restoration, ensuring adherence to industry standards and optimal network performance. These specialists possess the expertise, certifications, and equipment necessary to navigate complex projects and deliver reliable, high-speed connectivity.
